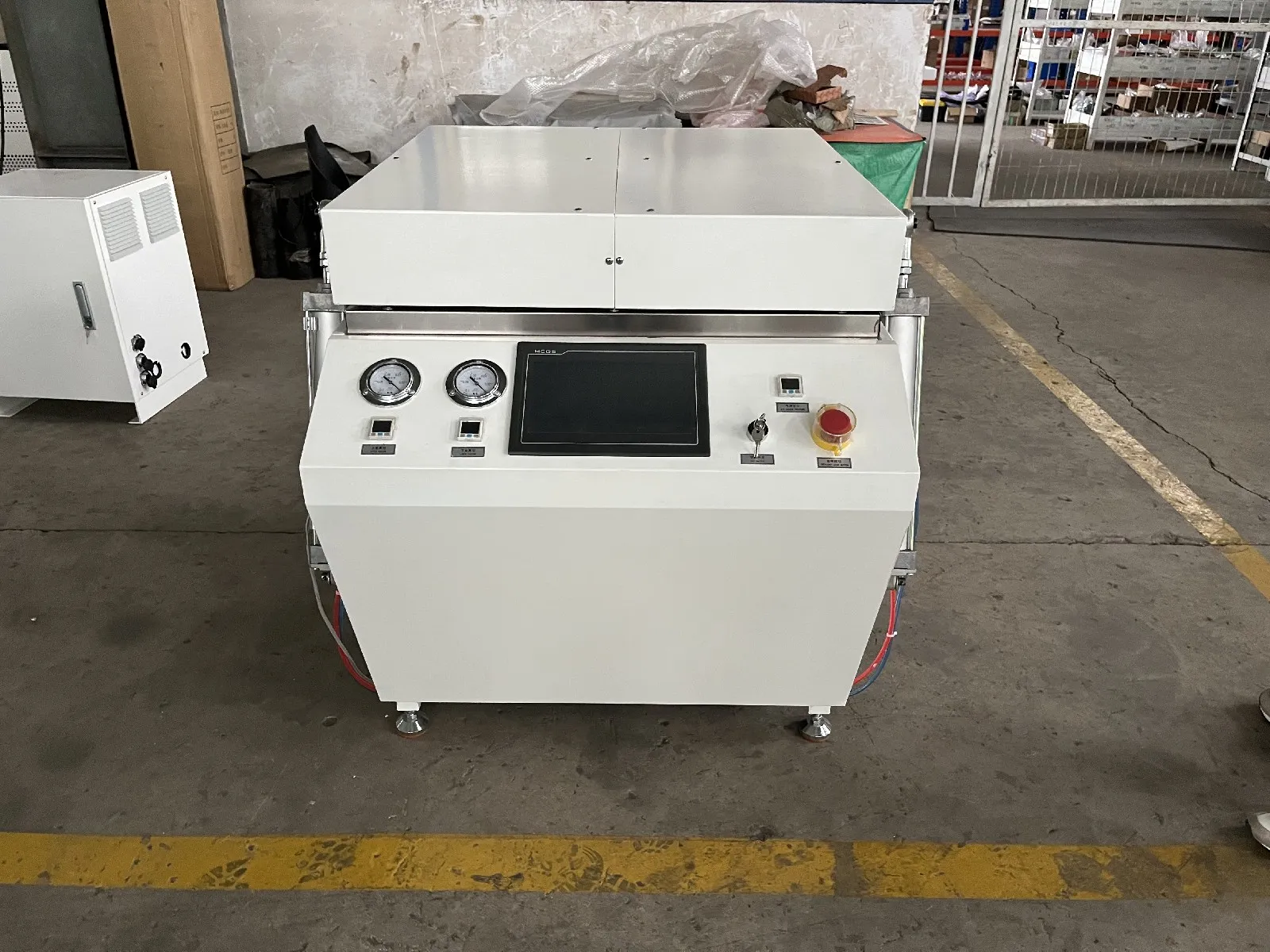

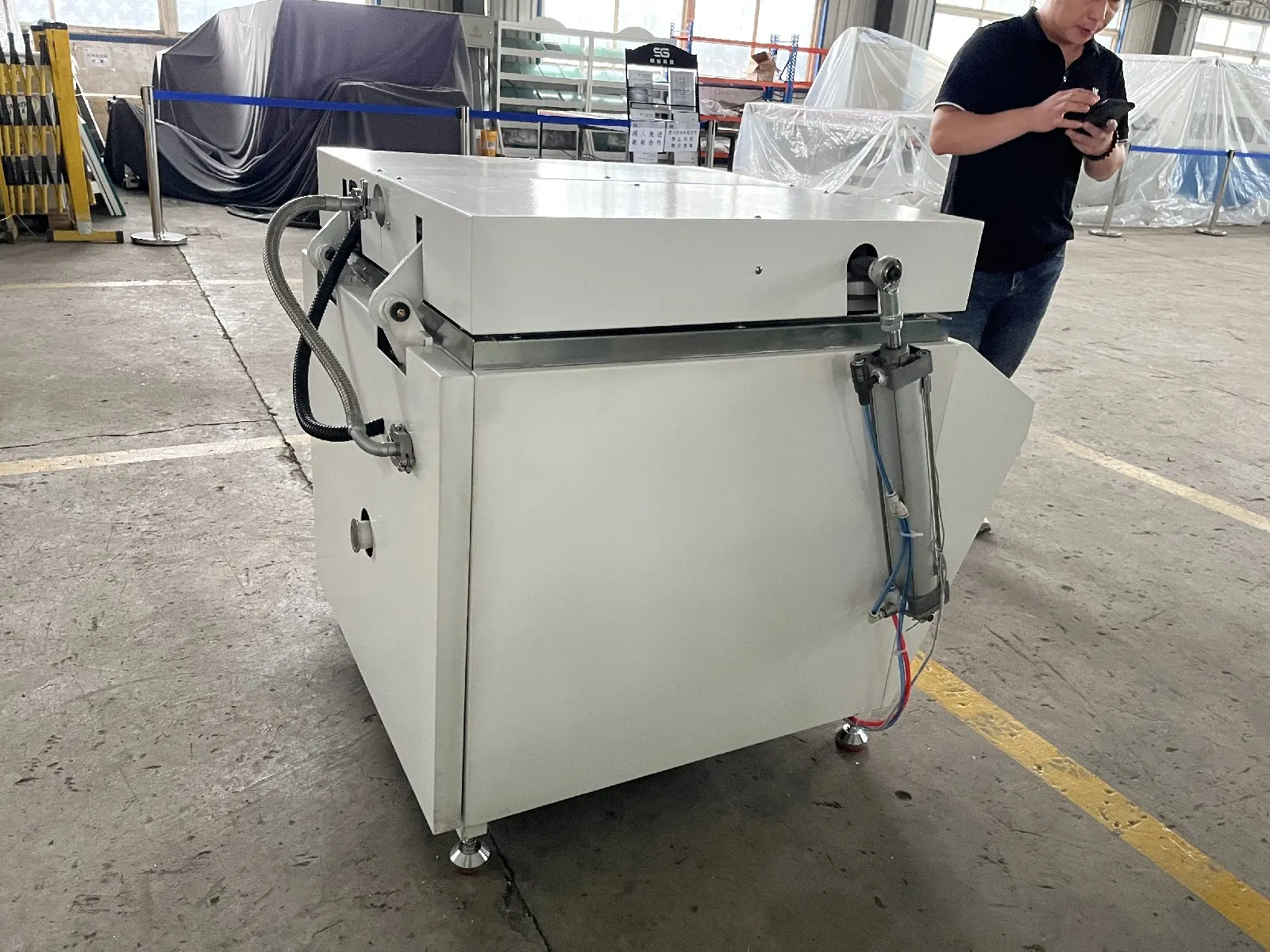

Ooitech OCY-H600D Semi-Automatic Solar Panel Laminator
Table of Contents
Product Introduction
Since 2022, a well-known Korean research institute has placed repeat orders with Ooitech for electric heating solar panel laminators, using them as dedicated process testing machines. Among the delivered models, the OCY-H600D Semi-Automatic Solar Panel Laminator stands out as a compact and reliable solution for R&D labs, pilot lines, and small-batch module production. Designed for researchers and engineers working on new cell technologies such as TOPCon, HJT, IBC, and shingled modules, this laminator offers precise temperature control and stable vacuum performance in a small footprint.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | OCY-H600D |
| Lamination Size | 600 x 600 mm |
| Heating Method | Electrical Heating |
| Lamination Height | 35 mm |
| Temperature Uniformity | ≤ ± 2°C |
| Temperature Accuracy | ≤ ± 1°C |
| Temperature Range | 30°C - 200°C |
| Compressed Air | ≥ 200 L/Min |
| Vacuum Degree | 40 - 100 Pa |
| Vacuuming Time | 5 - 30 min adjustable |
| Air Supply | 0.6 - 0.8 MPa |
| Dimensions | 1100 x 1100 x 1000 mm |
| Power | 4 KW |
| Working Voltage | 220V / 60HZ / 3PH |
Technical Advantages
Compact 600x600mm lamination area ideal for lab testing and small module prototyping
Electric heating system delivers stable ±1°C temperature accuracy
Low vacuum level down to 40Pa ensures bubble-free lamination
Adjustable vacuuming time flexibly supports EVA, POE, and special encapsulant testing
Proven reliability with repeat orders from Korean research institutions since 2022
Product Applications
The OCY-H600D is widely used in solar cell and module R&D laboratories, university research centers, encapsulation material testing, and pilot production for PERC, TOPCon, HJT, IBC, ABC, HPBC, shingled, and flexible thin-film modules. Its compact size and precise control make it the preferred choice for process validation before scaling up to full production lines.
